RP Toolz Handle Bending Tool RP-H Fall Savings

La description

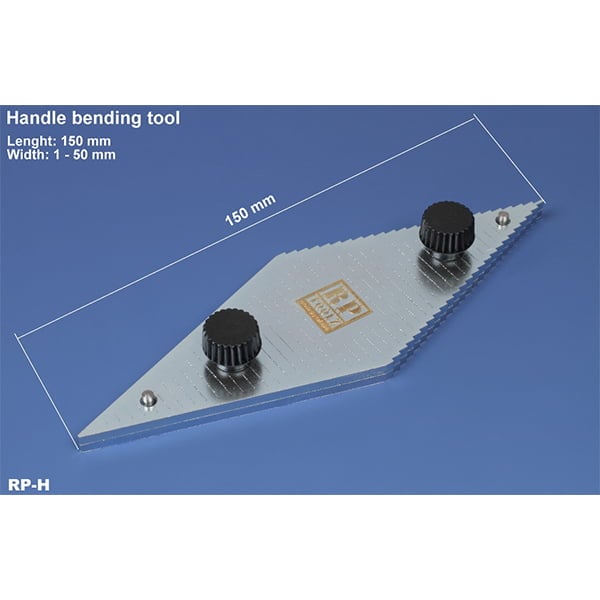

A specialized modeling tool designed for bending / bending wire with a total length of 150 mm, width 50 mm and weight of approx. 200 g. It was made of galvanized steel. The basic part of the tool in question consists of two relatively thick, diamond-shaped steel plates that adhere very well to each other. Each of them has protruding “teeth” on one side, enabling precise bending of the wire with a length of 1 to 50 mm. Both elements were connected with 2 steel pins and 2 screws with plastic caps. Of course, this solution allows you to freely lift one element over the other. The principle of the tool is very simple. First, cut a piece of the wire spool, and then adjust it to the desired length on the tool. The measurement can also be carried out with the tool itself on the model. After determining the dimensions of the wire, insert it between the diamond-shaped parts of the tool and then press them firmly together with the screws. When the wire is securely seated, you can begin to bend it. This operation can be performed with modeling pliers or metal tweezers. After bending the wire, its unwanted elements can be cut off with modeling pliers (for example: 4 1/2″ Wire Cutter)and file the cut with a needle-file. The model element created in this way can be glued to it with, for example, cyanoacrylate glue. The presented tool allows you to bend wires made of various materials, including mainly copper, aluminum or tin. It is characterized by a very good fit of all elements, as well as generally good quality and precision of workmanship. It also uses generally simple but effective design solutions. It is also worth emphasizing the high durability of the presented tool, as well as its ergonomics. It will allow for quick, effective and, above all, highly precise bending of the wire, which will later create all types of handles, handrails and the like on the model. With the right amount of skill, the tool can be successfully used for bending small photo-etched elements. Related products are for example: Wire cutting tool, Soldering wire diameter 0,25mm length 10m albo Zaginarka do drutu (Haidrail Jig).

Handle bending tool

Tool designed: Tool for aluminium and brass wire bending. Tool material: galvanized steel. Weight: 200 gr.

Contenu sujet à changement.
